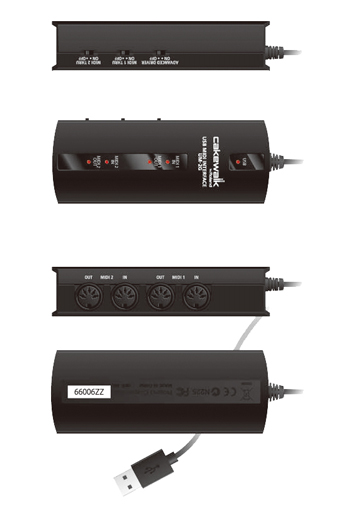

Edirol UM–2G 2x2 USB MIDI Interface

The compact solution for every desktop musician.

The UM–2G USB MIDI interfaces is a perfect, compact solution for every desktop musician. The UM–2G is a compact 2-In ⁄ 2-Out USB MIDI Interface designed for easy connection of multiple MIDI Keyboards, sound modules, control surfaces, and other devices to a computer. This interface is ideal if you need to connect more than one MIDI device in a small studio or portable configuration.

• 2-In ⁄ 2-Out MIDI ports (female), 32 channels of MIDI to control hardware and software
• Provides ability to connect multiple MIDI keyboards, sound modules, control surfaces, and other devices to a computer
• Ideal for musicians, producers or recording engineers with more than one MIDI device in a small studio or portable MIDI configuration
• PC and Mac compatible

Technical Specifications

Controllers

• ADVANCED DRIVER switch
• MIDI THRU switch x 2

Connectors

• MIDI IN x 2 (32 MIDI Channels)
• MIDI OUT x 2 (32 MIDI Channels)
• USB Cable

Power Supply

• Supplied from the computer via USB

Current Draw

• 70 mA

Dimensions

• 122.9 (W) x 48 (D) x 28 (H) mm
• 4-7 ⁄ 8 (W) x 1-15/16 (D) x 1-15 ⁄ 16 (H) inches

Weight

• 125 g ⁄ 5 oz

Accessories

• Owner′s Manual
• CD-ROM
