Band-in-a-Box® 2019 for Mac® Upgrade Manual

Chapter 3: Introduction to Band-in-a-Box 2019

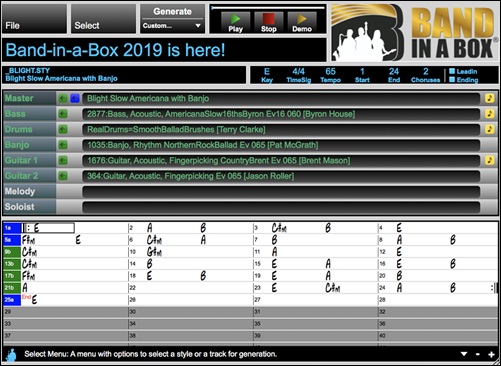

Let’s take a closer look at the great new features in Band-in-a-Box 2019!

Band-in-a-Box 64-bit version for Mac

There is a new 64-bit version of Band-in-a-Box.  This has the newest features of Band-in-a-Box 2019 and is a modern 64-bit audio app.  This means it can use the latest audio drivers and plugins that are designed for the 64-bit audio engine on your Mac OS.

You can tell that the 64-bit version is running by the startup screen or the About Band-in-a-Box dialog (Help | About Band-in-a-Box).

Band-in-a-Box VST/AU/AAX DAW Plugin

The Band-in-a-Box VST/AU/AAX DAW Plugin is separate from the Band-in-a-Box application and works directly inside your DAW GarageBand, Logic, Reaper, Pro Tools, Digital Performer, Ableton, PreSonus, etc.). The Plugin uses the content (RealTracks, styles, etc.) present in your Band-in-a-Box folder to generate audio or MIDI tracks that you can drag/drop from the Plugin into your DAW.
(There is a separate documentation for the plugin, including videos, on our website.

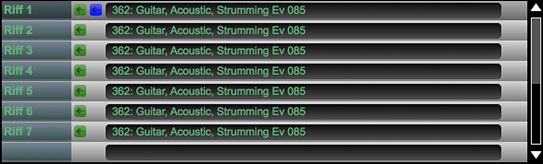

The Plugin also has the Multi-Riffs feature, which generates 7 different tracks using the same RealTracks.  Each of the 7 tracks generated will be the same RealTracks, but play different variations. For example, if you are creating an 8-bar guitar solo, it will generate 7 different guitar solos, allowing you as a producer to select the best parts to choose to use in your song.
Tip: Check out the Band-in-a-Box 2019 full features video ( for a demo of this feature at time 17m:10s.

New! USB 3.0... Speed Thrills!

The UltraPAK and UltraPAK+ are now pre-installed and ready to use on super-speed USB 3.0 hard drives! Faster hard drive transfer rates will enhance the program operations (faster time to generate tracks, reduced audio artifacts) and offer faster transfer speeds (typically up to 3x faster). Also available as a ~120 GB download.

SongPicker Redesigned with many Great Features

The SongPicker has been completely redesigned.  It shows information for up to 50,000 songs.  There are many filter features for finding songs.  You can also search songs that have similar chord progressions or melody fragments.

On the large toolbar, press the the large [Song] button.

On the small toolbar, press the a small button of two notes.

This will launch the SongPicker.

The SongPicker will show songs in Band-in-a-Box/MySongs,which is your “home” folder.  This is an empty folder but is used for you to put any songs.

  You need to press the [Rebuild] button to build the song list for this folder.

If the song list build is taking more than 3 seconds, you will see the progress at the top of the window.

If you want to see the song list in other folders, press the [Change] button.  You will see some menu options to choose folders.  There is also an option to always open the home folder.

You can change the width of any column in the list by dragging the boundary.  This customization will be remembered between sessions.

Title - This is the title of the song.
SubFolder - If the folder has subfolders, they will show here.
File - This is the file name of the song.
Melody - A  letter “M” indicates that the song has the Melody track.  A blank column means that the Melody track is empty.
Soloist - A letter “S” tells you that the Soloist track is present.  If the column is blank, the Soloist track is empty.
Lyrics - If the song has note-based lyrics, a letter “L” will show in this column.
Key - This is the key of the song.
TimeSig - The number shown is the numerator of the time signature, so “4” means the song is in 4/4 time and “3” means it is in 3/4 time.
Tempo - The tempo of the song displays.
Genre - This tells you the genre of the song.
Feel - The feel (even/swing, 8th/16th) will show in this column.
Form - This shows you the song form.   For example, if 1-32*3 is shown, the chorus starts at the bar 1 and ends at the bar 32, and there are 3 choruses in the song.
Date - The file was last modified in this year/month.

In the area below the song list, you can see the chord progression of the currently highlighted song.

You can copy and paste it into a text file.

The song list can be filtered st in many ways.

Type in any text, and the filtered list will show songs that contains the text in any field.

The “Subfolders” button allows you to filter the list by a certain subfolder of the current folder.

You can use “Genre/Feel” button to filter the list by genre, feel (even/swing, 8th/16th), or time signature.

The “Chords/Melody” button allows you to filter the list by a chord progression and/or a melody fragment.

The “Other” button is to filter the list by a certain style, songs with melody/soloist/lyrics, certain keys, tempo range, or file dates from certain years.

The Songs with Custom Chord Progression item in the “Chords/Melody” filter menu helps you find songs that contain a chord progression that you specify.

When the Custom Chord Progression Match dialog opens, type in a chord progression using a vertical line for a bar line.  (e.g. Dm7 | G7 | C |)

If you want to find the progression that is relative to the key of C (i.e. Dm7 is IIm7), then you should enable the “Only match if relative to this key” checkbox and set the key to C.
This function will always find the progressions in every key; for example, it will find | Am7 | D7 | G.

Note: The search will find variations of the chords.  For example, when searching for a C, it will find CMaj7, C/E.
Tip: If you want to find songs in a certain key, then press the “Other” filter button, go to Songs in this key, and select a key.

The Songs with Chord progression matching current song item in the “Chords/Melody” filter menu will help you find songs that has a similar chord progression in the selected range of the current song.

In the Song Chord Match dialog, specify the range by entering the start bar number and the number of bars.  When you press the [Update] button, the chord progression in that range will display.

With the Songs matching melody bar range item in the “Chords/Melody” filter menu, you can find songs with a similar melody fragment in the selected range of the current song.

When the Song Melody Match dialog opens, select the source track (Melody or Soloist), and specify the range.

If you want to find songs with a similar chord progression and a melody fragment in the selected range of the current song, select the Songs matching Chords and melody bar range menu item.

In the Song Chords and Melody Match dialog, select the source track (Melody or Soloist) and specify the range.

There are more buttons in the SongPicker for opening and finding songs.

The [Open] button closes the SongPicker and allows you to load any song from the standard Open Song dialog.
Press the [Recent] button to close the SongPicker and show the list of recently played songs.
The [Fav] button exits the SongPicker and allows you to select a song from the list of your favorite songs.
The [Search] button allows you to find a song that contains a certain text in any field. You can continue the same search with the [G] button.
Press the [Rebuild] button to rebuild the song list for the current folder.  The song list build very fast; approximately 150 songs will be processed per second.
The [Action Menu] button allows you to select additional options.
You can reset the dialog with the [Defaults] button.

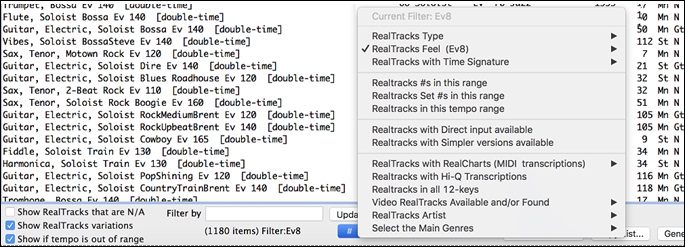

Advanced Filter to Search for RealTracks, RealDrums, and MIDI SuperTracks

A useful filter [#] button has been added in RealTracks Picker, RealDrums Picker, Best RealTracks, and MIDI SuperTracks Picker dialogs.

It allows you to filter the list by many elements including:

  • type (soloist/background/chording)
  • feel (even/swing, 8th/16th)
  • time signature
  • RealTracks/MST numbers in range
  • set numbers in range
  • tempos in range
  • direct input available (guitar recorded with no effects)
  • simpler versions
  • RealCharts (transcriptions available)
  • “Hi-Q” high quality notation available (for guitar and tab)
  • recorded in all 12-keys
  • video RealTracks available
  • main genre of the music
  • RealTracks/MST artist

The filter [#] button in the RealDrums Picker works like the one in the RealTracks Picker.  It includes a drums specific option, which can filter by RealDrums transcriptions (notation).

StylePicker Enhancements

The StylePicker has been enhanced with many great features.

If the style list needs rebuild, it tells you this inside the StylePicker instead of a message that requires a response.

While the style list is being rebuilt, you can see the progress inside the StylePicker.  Previously, the progress was shown in the yellow flash messages at the bottom right of the screen.  Now, in addition to that, it will be shown in the progress bar at the top of the StylePicker.  Moreover, the rebuild is faster than before by 75%.  It takes 1/4 of the time now.

The style list can be filtered by a specific RealTracks/RealDrums/MIDI SuperTracks or RealTracks/MIDI SuperTracks in a certain number range.  To use this feature, press the [Other] filter button in the StylePicker.  If you want to find styles that use RealTracks #362, for example, select Styles that contain a specific RealTracks or MIDI SuperTracks from the menu.

When the dialog opens, select 362 and press OK.

The list will be filtered to show styles that contains RealTracks #362.

Each style now has a genre “intensity” and you can filter the style list by a certain score range with the [Other] button menu.

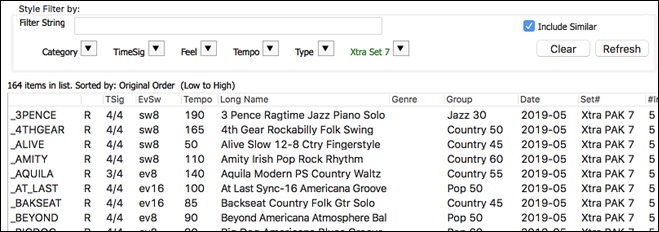

You can also filter the list by a specific Xtra Styles set.  Press the [Other] filter button and select Show Xtra Styles Set Only from the menu.

This will open the Choose Xtra Styles Set for Filter dialog.

The [More Info] button will take you to the PG Music website that shows information about the Xtra Styles sets.
Select from the list and press OK.  The StylePicker will then list styles that are included in the selected Xtra Styles set.

The StylePicker can list all styles (including N/A styles) in the default display. Previously, you could see all styles including N/A styles by enabling Show ALL Styles including N/A (not found) Styles in the [Other] filter button menu, but pressing the [Clear] button reset the list to show only available styles. Now, with a new option, you can see all styles including N/A ones even when all filters are cleared.  To use this feature, press the [Action] button and select Set Dialog Options.  Then, In the StylePicker Options dialog, enable the Default display should include all styles (available and N/A not available) option.

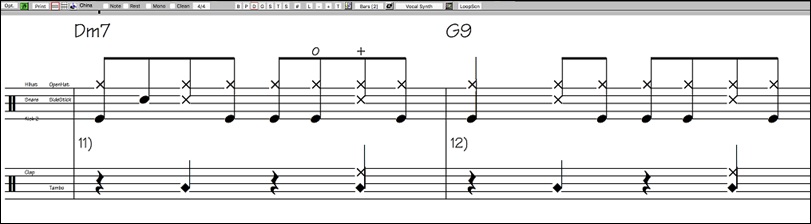

Drum Notation Support

All the MIDI Drums have drum notation.  Play the MIDI Drums and open the Notation window.  Then, select the Drums track and you will see drum notation.

Tip: You can force RealDrums to play as MIDI Drums by choosing the Drums track button at the top of the screen and selecting Force Drums Track to MIDI Drums.

In the clef area, you will see a guide telling you what drum notes are used in that line of notation (e.g. Kick, Snare, HiHat).

The drum notation shows on the Notation window, Lead Sheet window, and printout.

For the Melody or Soloist track, you need to set the track type to “Drums” either in the Notation Window Options dialog or with the menu command Melody (or Soloist) | Track Type.

Note: For this to work properly, you need to have the Melody track with drums that are using GM Drum notes.)

RealDrums Transcription (RealChart)

Some RealDrums have drum notation.  Currently, 21 RealDrums can show drum notation, and you can find them with the [#] filter button in the RealDrums Picker.

Tip: The “#” column shows “Ntn” if the RealDrums has drum notation.

Here is a list of 21 RealDrums with drum notation.




  If the RealDrums has drum notation, a small green underline will be added to the Drums track button at the top of the screen.

RealTracks Medley Enhancement

You can now control the loudness of each RealTrack in the medley.  To do this, press the [Medley] button in the RealTracks Picker to open the Create a Medley of different RealTracks dialog, and enter a dB offset value for each RealTrack.

Audio Harmonies Feature Enhancement

The audio harmonies feature that was introduced last year now uses BB-Harmony engine when you select the N voices above and M voices below.
After you record an audio (e.g. vocal, sax, etc.), you can create harmonies by opening the Audio Edit window and selecting Harmonize from the [Edit] button menu.

The Audio Harmony dialog now has the option to use sophisticated Band-in-a-Box harmonies by just choosing the number of voices above and below the recording.  It also has options to double the voice (unison) and transpose down/up octave.  For example, after you have recorded your sax playing, select 4 harmony voices, make 3 voices above, and make one of them an octave below.  You will then get a 5-part sax section harmony.

Song Titles Browser Enhancement

We’ve added 300 more song titles including requests from users, so there are now over 10,600 titles.  (Note: Song titles provide tempo and style information, not the chords or melody to the songs.)

The chord density filter is available.  For example, you can search titles that have chord changes in every 1-4 beats.  Press the [Other] filter button and select one of the menu items below Filter by Chord Density.

You can also filter the list by chord complexity.  This is scaled by 1 to 10; 1 means simple with few chord changes and 10 means complex with many chord changes.  Press the [Other] filter button and select one of the menu items below Filter by Chord Changes.

The memo area displays chord density and complexity for the selected title.

Melodist uses RealStyles

The Melodist now uses RealStyles instead of MIDI styles to generate songs.  This feature is enabled by the new “Use RealStyles” checkbox and you can also choose a different RealStyle by pressing the [Choose (2)] button.

If you prefer MIDI styles, you can uncheck “Use Real Styles.”

More Extreme Transpositions on some RealTracks

All the “Low Man” and “Re-amped” 12-key metal/thrash electric guitar RealTracks support this feature.

Notation Enhancements

Notation is much clearer, not jagged, on retina screens.

The right-click menu in the Editable or Staff Roll mode Notation window has an option to change the current beat resolution.  Previously, the only way to do this was to right-click on the time line.

Clicking close to a stave line will put a note on the stave line instead of between stave lines.  Previously, you had to click extremely close to a stave line to insert a note on it.



In the Notation Windows Options dialog, the clefs split point asterisk indicates that C5* is middle C.

The clefs split point can be set by the spin controls.

You can quickly enter forced accidentals from the right-click menu.  Previously, you could only enter them from the Note Edit dialog.

A new track type (Drums) is available for the Melody and Soloist tracks.  To see the Melody (or Soloist) track in drum notation, set the Melody (or Soloist) track type to drums with the option in the Notation Window Options dialog or with the menu Melody (or Soloist) | Track Type.

Note: For this to work properly, you need to have the Melody track with drums that are using GM Drum notes.)

When the track type is set to Drums, you can enter drum notation to the track.  Right-click on the Editable or Staff Roll mode Notation window and use the Insert (or change) Drum Note menu item.  For drum notes shown on the left in the drum guide (e.g. China, Splash, Crash2, etc.), you can also click on the corresponding vertical position of the drum note you want.

Holding down the control key and pressing the zoom in/out buttons results in finest possible incremental adjustment in size.

There’s a keystroke entry mode, which lets you enter a melody entirely using keystrokes.  The keystrokes are N to enter a note, up/down cursor to change its pitch, M to enter a third note, and left/right cursor to move the time line.

Hit the N key to enter a note at the current time line.

While the note is highlighted, use the up/down cursor keys to change its pitch.

If you want to add a note a third above the existing note on the current time line, hit the M key.

Use the right/left cursor keys to move the time line.

A new button in the Print Options dialog lets you quickly print a “chords only” fake sheet.

You can also access this from the right-click menu on the Chord Sheet.

Hotkeys Added

Hotkeys have been> added to set the time signature for the current bar.  Just type a time signature (4/4, 3/4, 2/4, or 1/4), and it will be entered to the current bar.  Typing 0/4 clears the time signature from the current bar.

11 hotkeys have been added for loading styles.


Opens the StylePicker.


Opens the StylePicker.


Shows the Best RealStyles list.


Opens the Song Titles Brower.


Opens the Recently Played Styles dialog.


Opens the Favorite Styles dialog.


Loads a style from the disc.


Loads the previous style (alphabetical).


Loads the next style (alphabetical).


Loads the song demo for the current style.


Plays the audio demo for the current style.

13 hotkeys have been added for loading songs.


Opens the SongPicker.


Opens the SongPicker.


Opens the Recently Played Songs dialog.


Opens the Favorite Songs dialog.


Opens a song from the disc.


Opens the SongPicker.


Opens the previous song (alphabetical).


Opens the next song (alphabetical).


Opens a MIDI file.


Opens an audio file.


Opens the song demo for the current style.


Opens a Karaoke file.


Launches the Audio Chord Wizard.

6 hotkeys have been added for RealTracks.


Opens the RealTracks Picker.


Opens the RealTracks Picker.


Opens the RealTracks Settings dialog.


Opens the Select Best All RealTracks dialog.


Opens the Select Best Chording RealTracks dialog.


Opens the Select Best Soloist RealTracks dialog.

4 hotkeys have been added for RealDrums.


Opens the RealDrums Picker.


Opens the RealDrums Picker.


Opens the RealDrums Settings dialog.


Opens the RealDrums QuickList dialog.

A hotkey has been added to open the Pick a Loop dialog.  Press rl<Enter>.


Thank you for taking the time to read this introduction to Band-in-a-Box 2019!
