Band-in-a-Box 2019 New Feature - Notation Enhancements

Notation is much clearer, not jagged, on retina screens.

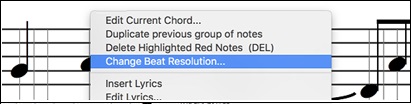

The right-click menu in the Editable or Staff Roll mode Notation window has an option to change the current beat resolution.  Previously, the only way to do this was to right-click on the time line.

Clicking close to a stave line will put a note on the stave line instead of between stave lines.  Previously, you had to click extremely close to a stave line to insert a note on it.

previously:

now:

In the Notation Windows Options dialog, the clefs split point asterisk indicates that C5* is middle C.

The clefs split point can be set by the spin controls.

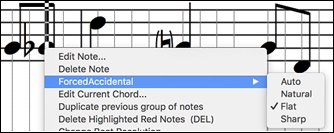

You can quickly enter forced accidentals from the right-click menu.  Previously, you could only enter them from the Note Edit dialog.

A new track type (Drums) is available for the Melody and Soloist tracks.  To see the Melody (or Soloist) track in drum notation, set the Melody (or Soloist) track type to drums with the option in the Notation Window Options dialog or with the menu Melody (or Soloist) | Track Type.



Note: For this to work properly, you need to have the Melody track with drums that are using GM Drum notes.

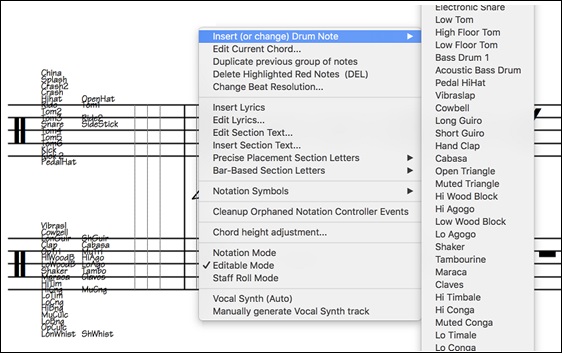

When the track type is set to Drums, you can enter drum notation to the track. Right-click on the Editable or Staff Roll mode Notation window, and use the Insert (or change) Drum Note menu item. For drum notes shown on the left in the drum guide, you can also click on the corresponding vertical position of the drum note you want.

Holding down the [Ctrl] key and pressing the zoom in/out buttons results in finest possible incremental adjustment in size.

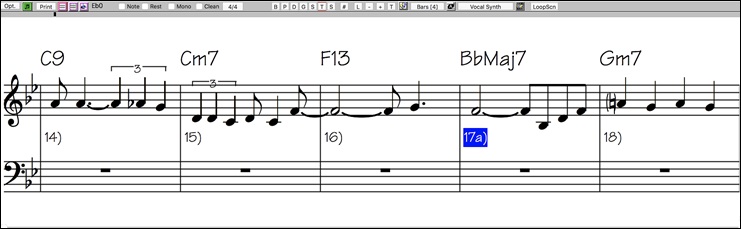

There’s a keystroke entry notation modee, which lets you enter a melody entirely using keystrokes.  The keystrokes are N to enter a note, M to enter a third note, up/down cursor to change the pitch of the highlighte note, and left/right cursor to move the time line.

Hit the N key to enter a note at the current time line.

While the note is highlighted, use the up/down cursor keys to change its pitch.

If you want to add a third note on the current time line, hit the M key.

Use the right/left cursor keys to move the time line.

Hit the N key to enter a note at the current time line.
