Band-in-a-Box® 2023 for Windows® User's Guide

Chapter 13: Tools, Utilities, and Apps

Install Manager

You can download and install the entire package of your order with the one-click Install Manager. This is a much simpler alternative to manually downloading and installing all the files individually that are listed on the “My Products” page in your account. This is particularly useful for “download-only” (e-delivery) versions of the Band-in-a-Box Pro, Mega, and UltraPAK, since there can be 100 GB of files to download and install. (Note: If you selected the download-only option during checkout and are having trouble getting your files, you could contact us to have a physical copy shipped.)

Do I need to use the Install Manager?

You do not need to use the Install Manager. There are several options for you to download and install files. The Install Manager is available as of November 2021, but any method that you have used in the past to download your files will still work the same. For example, if you prefer, you can download the files individually by clicking them one at a time as you may have done in the past. Or, you can copy your download links into your preferred third party download manager

Where to find the Install Manager

After you place your order, click on the link(s) in your order confirmation email to go directly to your Downloads page for each product. (Note: The Install Manager will only work for orders placed on March 2021 or later. For any order (including orders placed prior to that), you can still access the downloads on your “My Products” page by logging into your account at and clicking on [My Products].)

If the Install Manager is available for the product, there will be a link to download it at the top of your download page list. (Note: Download the 64-bit version unless you have an old computer with a 32-bit OS, which is not very common.)

Once this setup file is downloaded, run it to install the Install Manager on your computer. By default, it will be installed into your Band-in-a-Box Data folder (e.g., C:\bb\Data\InstallManager) and will create a desktop shortcut icon. It is ok if you don't yet have Band-in-a-Box installed on your computer. (Note: There is an older “Download Manager” that you may have in your bb\Data\downloadManager folder. This is an older program that works differently.)

Note: More documentation for the Install Manager is available at:

Find File

So many files, so little time?  This feature is a “Swiss Army Knife” that allows you to find a Band-in-a-Box song (or any file that Band-in-a-Box can open), including filtering by words found in the file name or any text in the file. Go to File | Open Special | Find File to open this dialog.

You can define your search by the name and location of the file, or by the date and size.

Name & Location
This includes filtering by words found in the file name or any text in the file.  For example, you can

  • get a listing of all Band-in-a-Box songs on your PC with the word “Blues” in the title.
  • get a listing of all Band-in-a-Box songs in the BB folder with the word “Reggae” in them.

Date & Size
Use this window to search in a particular range of dates or times.  This can be useful if you have multiple versions of a file from different dates and sessions.
The listing stays between sessions, so you can then take your time to explore all the songs that Band-in-a-Box offers that match your find term.

DAW Plug-In Mode

Band-in-a-Box has a “plug-in” mode for your favorite sequencer (RealBand, Sonar, Reaper, Pro Tools, FL-Studio, Nuendo and more).  With the plug-in mode, Band-in-a-Box is open as a small always-on-top window, and acts as a plug-in for your favorite DAW/sequencer, so that you can drag-and-drop MIDI and audio (WAV) tracks from Band-in-a-Box to your favorite sequencer.  Work in your favorite sequencer, type a progression in Band-in-a-Box, and then simply drag the track from Band-in-a-Box to your sequencer’s track at the desired track and bar location.

The DAW Plug-in mode is a mode within the regular Band-in-a-Box program.  This mode allows you to transfer tracks, or parts of tracks, to other DAW Sequencers easily, by simply dragging the track icons from Band-in-a-Box (BB) to the tracks window of your DAW.

For the Drag and Drop to work, you need to have your MIDI driver set to use a DXi or VSTi synth (like Coyote WaveTable DXi).

 You can enter and exit the plug-in mode easily by pressing the small [DAW] button on the main toolbar.

When you select the DAW mode…

  • The window size of Band-in-a-Box changes to a small size (you can resize it to the size/position that you want, and it will remember that).
  • Band-in-a-Box becomes an always-on-top window, if the option is set in the Plugin settings dialog.

Drag and Drop Tracks

This is the Drop Station where you drag a track radio button at the top of the screen or a track label from the Mixer and drop it to get an audio or MIDI version of the track.  It shows six different file types: audio files (WAV/WMA/M4A/MWAL/MP3) or MIDI file (MID).

The Drop Station makes it faster and easier to make different file types.  It also allows you to make MIDI versions of the RealTracks (RealCharts), by simply dragging a RealTrack to the “MIDI” area of the Drop Station.

  If you want the entire performance dragged to the DAW, drag the Master button to the Drop Station.  By default, a single file is dropped with the entire arrangement.  But if you want all tracks transferred as separate files, uncheck the “Drag Master as separate tracks” option in the Plug-in Setting dialog.

  If you want a single track transferred, drag that track name.  For example, drag the Bass icon to transfer the bass track.  If the track is a RealTrack with RealCharts, you can drop it to the “MIDI” area.

  If you want to transfer only a portion of the performance, you can do this by selecting the region in Band-in-a-Box, and then dragging the track button to the Drop Station.  (Don’t drag the selected region.)

When you drop the track onto the Drop Station, you will see an orange color, indicating that the track is accepted and the file is being prepared.

When the file is ready, the Drop Station turns green.  You can now drag it to your favorite DAW (Sonar, Pro Tools etc.) or Windows® Explorer.

When you drop the track to the [+], you are presented with a dialog, where you can choose a file format and other render options.

You can choose a format (WAV, WMA, WMA lossless, M4A, MP3, or MID) of the file.

When you have dragged the Master radio button, you can select the Separate files for each track option.

Check the Include Mix option to render a mix of all tracks to a separate file..

If the Individual tracks flat, dry, and center option is enabled, each track will render ignoring its Mixer settings (Volume, Pan, Reverb, and Tone), and the default settings will be used instead. The default settings are Volume=0 db, Pan = 0, Reverb= 0, Tone = 0). If this option is disabled and there is no lead-in in the Melody track, the lead-in will be skipped in the rendered file.

If Normalize audio files is selected, the file will be normalized.  Normalizing boosts the volume to a maximum level without distortion.  Most professional music tracks are normalized.

If you want to add ACID information (tempo, key, and time signature) to the WAV file, check the Acidize WAV files option.

The dialog also has settings for Bit Depth (16, 24, 32 bit) and Sample Rate (44.1, 48, 96 kHz).

Plug-In Settings

To get to the DAW Plugin settings dialog, press the [Plugin] button and choose the menu item Options for DAW Plug-in.


Alternatively, go to the Preferences dialog and click on the [DAW Plugin] tab.

You will then see the plug-in options.

Allow Drag n Drop: If this is disabled, the Drag Drop feature will not work.  There shouldn’t be a reason to disable this.
Drag Individual MIDI tracks as audio (using VST/DXi): This option applies when you drag a track directly to a DAW.  When it's enabled, the chosen MIDI tracks get converted to audio, using your currently selected VST/DXi (e.g. Coyote WT or Forte).
Drag Master track as audio (using VST/DXi for MIDI tracks): This option applies when you drag a Master track directly to a DAW.  When enabled, each track will get converted to audio using your currently selected VST/DXi (e.g. Coyote WT or Forte).  If not selected, the MIDI tracks in the arrangement get transferred as MIDI, in a single file.
Drag Master as separate tracks: If this is enabled, when dragging the Master radio button, the drop will result in multiple files, one for each track.
Drag Audio as: You can select a type of audio files to create.
Always on Top: If this option is enabled, the Plug-in window will be always-on-top.  Note that if you change this in the dialog, it won’t take effect until you exit the dialog.
Recycle (trash) all dropped files in this folder on bootup: If you enable this option, the DragDrop folder (C:\bb\DragDrop) will get erased on bootup.  Many DAWs require the files to remain permanently, so do not enable this option unless you are sure that your DAW does not require the files to remain.
You can use a Custom Drag n Drop Folder for the temp files if you prefer, inside your DAW’s folder for example.  Then the dragged files will also be in Explorer in a folder near your DAW’s audio project.


The Coyote Wavetable DXi synth is included with Band-in-a-Box.  This works with Band-in-a-Box and other DXi compatible host programs to produce realistic instrument sounds and is compatible with all the latest Windows® operating systems, including the 64-bit version of Windows® 7, 8, 10, or 11.

The CoyoteWT can be installed automatically when you install Band-in-a-Box, or you can install it at a later date by running the file SetupCoyoteWT.exe from theC:\bb\Data\Installers folder.

Selecting the CoyoteWT

To use the Coyote Wavetable as your driver, press the [MIDI] toolbar button and select MIDI/Audio Driver Setup from the dropdown menu.  This will open the MIDI/Audio Drivers Setup dialog.

Enable the Use VST/DXi Synth option and press the [VSTi/DXi Synth] button.

Then select the <DXi> CoyoteWT from the list.

Coyote WT Overview

The main display panel lists the sixteen available MIDI channels down the left side with the program, bank number, and name of each instrument patch assignment.  During playback the number of voices (notes) being used by each instrument is displayed.

What does CoyoteWT do?
CoyoteWT (WaveTable) works in conjunction with Band-in-a-Box or other DXi-compatible host programs, to produce realistic audio output.  It plays “samples” of actual instruments in response to commands from the DXi host.  For instance, when Band-in-a-Box says to play a loud middle C using an acoustic steel-string guitar, CoyoteWT looks up that note of that instrument in its sample-bank database and then outputs that note to the sound card, at the requested volume, for the requested duration.

System Requirements
Generating a realistic emulation of dozens of instruments at a time requires a fairly powerful computer.  The following requirements should be considered as absolute minimums:

  • Pentium III CPU at 500 MHz.
  • 128 MB RAM.
  • 20 GB disk, 7200 rpm.
  • a 16-bit sound card.
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10, or 11.

For best performance, the following specifications are recommended:

  • Pentium-4 or Athlon XP CPU at 1.7 GHz.
  • 256 MB RAM.
  • 40 GB disk, 7200 rpm, 30 MB/s read rate.
  • a 20-bit or 24-bit sound card.
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10, or 11.

Coyote Settings

Program settings for the CoyoteWT are made in its context menu.

The context menu can be accessed by right-clicking on the CoyoteWT property page (that is, its main display).
Click on the features in the list to enable or disable them.  Several of the features open dialog boxes with additional controls.
For help, click on the Help Index item.

Reverb: Clicking on this menu item brings up a dialog in which you can control the reverb parameters.  The available controls are:

  • Room Size: select one of:
    • Club (the smallest simulated room)
    • Stage
    • Hall (the largest simulated room)
  • Damping: Setting the slider to the leftmost position simulates a room with hard, reflective walls.  Setting the slider to the rightmost position simulates a room with absorbent walls.  The effects of this control are fairly subtle.

Click on OK to apply the changes.
Enable Compressor: Clicking on this menu item turns the compressor on or off.  When it is on you will see a check mark beside the menu item.
When the compressor is enabled, the overall dynamic range will be slightly compressed (mostly by boosting the quieter signals), and the sound will have a little more “presence.”
Enable Limiter: Clicking on this menu item turns the limiter on or off.  When it is on you will see a check mark beside the menu item.
When the limiter is enabled, the overall volume level is increased, and in order to keep momentary peaks from clipping or distorting, CoyoteWT briefly reduces the volume just before the peak occurs and then increases it again after the peak is over.  The volume changes are performed smoothly and are usually inaudible.  The increased volume is desirable because it increases the overall signal-to-noise ratio.
Tuning Adjust: Clicking on this menu item brings up a dialog in which you can enter an adjustment to be applied to all samples in the sample-set.  The adjustment is specified in terms of cents, where one cent is 1/100 of a semitone.
Limit Polyphony: Clicking on this menu item brings up a dialog in which you can specify the maximum polyphony (number of simultaneous notes that can be played).  If your CPU is not powerful enough to handle 100 notes at once (some are not) you may be able to reduce audio clicks by choosing a number lower than 100.  This is usually preferable to the artifacts produced when you run out of CPU power.
EQ: Clicking on this brings up a dialog in which you can specify the amount of boost or cut to be applied to the low or high frequencies.  You can use this to compensate for the frequency response of your speakers, your sample file, or just to accommodate your preference.
The bass (low frequencies) and treble (high frequencies) can each be boosted or cut by up to 12 dB.  Positive numbers produce a boost; negative numbers produce a cut.
You can also specify an overall volume adjustment.  The allowable range is limited to plus or minus 3 dB.
Enable High-Quality Resampler: CoyoteWT modifies the pitch of a note by resampling.  Normally you should leave the default, high-quality, enabled.  However, if you are using a slow PC (say, 500 MHz or less) you may get better results by disabling high-quality mode.

Guitar/Bass Tuner

The Tuner is optimized for guitar and bass, though it may be useful with other instruments.  Connect an electric guitar or bass to your computer’s sound card Line-In, or tune an acoustic instrument using a microphone connected to the sound card Mic input.  Play a pitch and the tuner will auto-range to determine the nearest note and display the intonation of your instrument.

Press the on-screen [Tuner] button or select the Window | Guitar Tuner menu item to launch the Tuner Window.

Tip: There are detailed Guitar Tuner instructions in the online Help topic connecting an Instrument.

The Tuner must be able to receive audio from your instrument via the line-in or microphone input of your sound card.  Please make sure that either the Microphone In or Line-In is enabled in the Recording Properties of the Windows® Mixer (or the appropriate Mixer application for your sound card).

Master Tuning

This function allows you to tune your sound card or module to another instrument, as well as adding a testing function to see if your sound card supports Master Tuning.  This is useful if you’re playing along with an instrument or recording that can’t easily be re-tuned like an acoustic piano.  A setting of 0 is the default A = 440.

Select the Options | GM Settings, etc. | Master Tuning menu item to launch the Master Tune dialog.

Tip: Not all sound cards/modules support the Master Tuning feature.  To see if your sound card supports Master Tuning, press the [TEST] button in the dialog shown above.

MIDI Monitor

MIDI Monitor displays a listing of data received from computer MIDI Input and/or Band-in-a-Box output, useful for educational or diagnostic purposes.

The MIDI Monitor opens with the [MIDI] button on the main screen toolbar, or with the menu command Window | MIDI Monitor.

Tip: To display the data received from the computer MIDI Input, the MIDI THRU option must be enabled in Band-in-a-Box.

The MIDI Monitor has options for 1-based patch numbering and patch name display.  Quick View Filter presets (such as “Notes Only,” “Controllers Only,” “Program Changes Only,” “Programs including Bank Changes”).

MIDI Monitor - Main Window

Event: The current event number since the display was last cleared.

Clear: Clears MIDI Display, Event counter, and Channel Activity panel.

Save Text: Save a tab-delimited text file of the data in the MIDI display.  The file can be opened with a word processor or spreadsheet program, for printing or further study.  Various Save Text options can be adjusted in the Settings window.

Settings: Open the Settings dialog, to adjust display behavior.  The display can be modified to suit the task at hand.

Filter: Open the Filter dialog, where receive settings can be adjusted.

Sequencer Control: The [Play], [Rewind], and [Stop] buttons control song playback without the need to return to the main Band-in-a-Box screen.

Timer: A millisecond timer is useful for viewing timing relationships between messages.  To use Band-in-a-Box to measure in milliseconds, set Band-in-a-Box PPQN to 480, and Band-in-a-Box tempo to 125 BPM.  With this special resolution and tempo, tick values in the Event List window will correspond to milliseconds.

Current Time - The millisecond count since the timer was last started.  Click anywhere in the Timer area to clear the Current time, setting it to zero.

Channel Activity Panel: This panel has an array of “LEDs” to show which channels are active.

MIDI Display Area: The MIDI Display area at the bottom of the main window, displays the data generated by Band-in-a-Box and/or data received at the computer MIDI input.  Each row is a single MIDI event.

Evt #: Event number, starting from when the display was last cleared.

Time (mS): The time in milliseconds of the event, from when the timer was last cleared.

Source: Int means the event was generated by Band-in-a-Box, and Ext means the event was generated by an external MIDI Device attached to the computer MIDI In port.

Raw: The raw bytes representing each MIDI message.  Most MIDI Message types contain three bytes, but some messages contain one or two bytes.  SysEx messages can contain an arbitrary number of bytes.  This field is blank in the case of SysEx messages.  With SysEx messages, up to 16 “Raw” bytes are displayed in the Data fields.  Long SysEx messages are displayed on multiple lines, 16 bytes per line.

Status: Text name of the Event type.

Chan: MIDI channel of the Event.  This field is blank for System messages (values from $F0 to $FF).  System messages do not have an associated channel.

Data 1: Text name for the meaning of the first data byte of the MIDI message.  For some messages such as Pitch Bend or Song Position Pointer, the value of both bytes 1 and 2 are displayed in Data 1.

Data 2: Text name for the second data byte of a MIDI Message.

Note: Some MIDI messages, such as Program Change or Channel Pressure, have only a single Data byte, and the Data 2 field will be blank.  Also, some MIDI Messages have no data bytes, in which case both Data fields will be blank.

Display Filter

  The Display Filter dialog allows you to select what MIDI events will be recognized by the MIDI Monitor program.

Tip: Virtually any combination of display events can be selected in the filter.  It is therefore possible to select combinations that do not display any MIDI events at all.  The MIDI Monitor will warn you about the more obvious “nil” combinations, but if you find that you are not receiving what you expected, carefully re-examine these filter settings.

Fretlight® support

The Fretlight® is a cool electric hardware guitar that has LED lights on the frets.

If you have a Fretlight, you can mirror the output of the Band-in-a-Box on-screen guitar to the Fretlight fretboard. You can just look at the Fretlight as you play along to any of the great guitar RealTracks or guitar Artist Performances as you hear the playing, and see the fret positions on your Fretlight guitar.

Note: Band-in-a-Box does not support a wireless Fretlight guitar with Bluetooth.

For the wired Fretlight Support to be enabled, you need to set “Fretlight Guitar Support” in the Guitar window.

Plug in the Fretlight to your computer, and Band-in-a-Box will find it.  Then, any output that happens on the Band-in-a-Box Guitar window will automatically get mirrored to the Fretlight so that you see the guitar played on your Fretlight.  Now you can, using your Fretlight:

  • See the Artist Performance Tracks played by Nashville Legend Brent Mason show up on your Fretlight guitar as you hear the tracks.
  • Set the Guitar Tutor in Band-in-a-Box to play strumming chord shapes, which works for any song in Band-in-a-Box (choose your chord types jazz/pop/folk etc.)
  • See RealTracks played on your Fretlight guitar, as you hear them played by the Masters in audio.

TranzPort® Support - Wireless Remote Control

The Frontier Design TranzPort® is a wireless remote control hardware unit (Electronic Musician Editors’ Choice 2006) that allows you to control Band-in-a-Box through walls from 30 feet away!

Note: The TranzPort is not currently in production.  It’s still a great product if you can find one.

The backlit LCD provides a two-line readout, and buttons and a wheel allow control of many Band-in-a-Box features.  Select songs and play/stop/pause/loop.  Select/mute/solo tracks and volume/tempo changes are all supported.  And best of all, when the song is playing, the chords of the song are displayed in time on the backlit LCD screen.

You can, for example, put the TranzPort unit on your piano at home (or your music stand on a gig) and load/play/control and view chords for songs, all while far away from your computer – all wirelessly up to 30 feet – even through walls!  Selectable transpose lets the TranzPort show chords in a non-concert key (e.g. Eb Alto) while the computer shows concert -great for jam sessions!  Or display the scrolling lyrics of the song on the TranzPort for a wireless Karaoke session!  The TranzPort also works “right-out-of-the-box” with other popular music software, including Sonar™, Logic®, and many others.

Using TranzPort with Band-in-a-Box

First, you need to purchase a TranzPort unit, and install it.

Now, make sure that the TranzPort is installed and working.  You can determine that it is installed and working by running Band-in-a-Box and looking at the list of MIDI Drivers (Options | Audio/MIDI Driver Setup).  If “TranzPort” appears on the list of MIDI-IN and MIDI-OUT drivers, then the TranzPort is installed correctly.

Important: DO NOT SELECT the TranzPort drivers, since it is not a sound module.  Band-in-a-Box will automatically find the TranzPort unit to send/ receive data.

To start using the TranzPort

  • While Band-in-a-Box is running, “wake up” the TranzPort by pressing a key on the TranzPort (STOP key for example).
  • The TranzPort display will show
    “Title of BB song” <tempo> <Current Track> <track volume> <patch #/name>

For example, the screen might say

  • “My Tune”
  • 120  Mel   v 122  p1 Acoustic Piano
  • Track < and Track> buttons change the current track Bass/Drums/Piano/Guitar/Strings/Melody/Soloist/Thru

Controlling Patches/Tempo/Volume

  • The WHEEL changes the tempo.
  • Shift-WHEEL changes the volume of the ALL TRACKS.
  • [Prev] [WHEEL] changes the volume of the current track.
  • [ADD] [WHEEL] changes the patch of the current track using Favorite Patches.
  • [NEXT] [WHEEL] changes the patch of the current track, cycling through all patches.
  • MUTE AND SOLO mutes or solos the current track.
  • [SHIFT] MUTE, will mute/un-mute ALL tracks.

Loading Songs

  • [IN] button opens the “Favorite Songs” dialog.  The LCD screen of the TranzPort displays the current song, and the WHEEL cycles through the various songs.  When you’ve found the song that you want, press PLAY to load and play the song (or “Solo” to function like the OK button in the Favorite Songs dialog, note if “Play song when chosen” is set or not in that dialog).  Press UNDO to cancel the dialog.
  • [OUT] button functions in a similar manner, except it uses the Song List dialog.
  • [Shift]- [IN] loads the previous song in alphabetical order, by filename, in the same folder.
  • [Shift]- [OUT loads the next song in alphabetical order, by filename, in the same folder.

Playing Songs

  • PLAY button plays the song.
  • [RED button beside play] pauses the song.
  • STOP button stops the song.
  • [<<] and [>>] buttons jump to the previous or next section of the song.  You can define custom sections of the song (using the Conductor in Band-in-a-Box), but if you haven’t, the sections default to lead-in, intro, first chorus, middle chorus, last chorus, ending.
  • LOOP button will loop the current section
  • SHIFT LOOP button loops 4 bars
  • UNDO is panic button (turn MIDI notes off)

Playback Display
During playback, you will see the chords (and/or lyrics) to the song, scrolling along in time to the music.  For example, you might see this…
*5| D        | D7          |
7| G        | Gm
The * marks the current bar (bar 5), which is a D chord.  The screen always scrolls to show you 2 bars ahead of the current time.

TranzPort Dialog
   There is a TranzPort Settings dialog inside Band-in-a-Box with additional settings.

Enable TranzPort support for Band-in-a-Box in the Tranzport Settings dialog.
If you want lyrics to display on the TranzPort during playback, set these options.
Players of non-concert pitched instruments can use “Transpose the display.”  For example, an Alto sax player would press the “Eb Alto” button, and then the TranzPort display would show chords transposed to his key.

BB Remote

Remote control for desktop Band-in-a-Box for Windows®

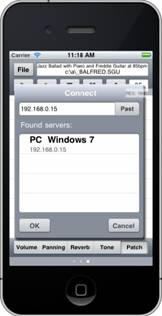

BB Remote is an app for your iPhone.  It is used as a remote control to control your existing desktop version of Band-in-a-Box 2011.5 or higher.  The sounds will come out of the desktop program, not the iPhone.  You must have the desktop version of Band-in-a-Box 2011.5 to use the program at all.

BB Remote is available from the Apple® App Store.

Note: To allow BB Remote to connect, make sure that Band-in-a-Box Server is running on your desktop Windows® PC.  You need to have a program called C:\bb\bbhelper\BandInABoxServer.exe running.  If it is running, you will see a musical note icon on your Windows® system tray in the right lower corner of the Windows® taskbar.  You can run or install the server from the main Band-in-a-Box Windows® program, using the menu item Windows | BB2Go.  You need to have BandInABoxServer.exe running in the system tray- see for details.
Note: There is another application for iPhone that we make, called Band-in-a-Box for iPhone that lets you generate new songs – with the sound coming from the iPhone - and it isn’t a remote control like this one.  More about Band-in-a-Box for iPhone at

The BB Remote app has different screens, accessible by “swiping” the screen to the left/right.

BB Remote Main Screen- Chords View

The Chords view lets you see the chords of the song, and the current bar of the song highlights during playback.  For example, you could be seated at your piano, far from the desktop PC, and be loading in and playing songs, with the sound coming from your desktop PC, but you see the chords and current bar on the iPhone.

BB Remote Conductor Window

This allows fine control of playback, including jumping to sections, choruses, # bars etc. and looping.

Mixer Window – BB Remote

The Mixer window of BB Remote for iPhone allows you to mute/solo or adjust volumes, panning, reverb, tone, or patches of the desktop program in real time.

Patch Selection – BB Remote

The patch selection window of BB Remote for iPhone allows you to view or select patches.  If you press play again, the changed patches will sound in the song.

File Menu – BB Remote

Server Connect Window – BB Remote

Band-in-a-Box for iPhone

Band-in-a-Box for iPhone (BB iPhone) is an app for iOS devices including iPhone®, iPad®, and iPod Touch®.  The BB iPhone version is meant to function as a client to the regular Band-in-a-Box desktop version.  If you don’t own a copy of the BB Desktop software, the usefulness of the BB iPhone version will be quite limited.

Band-in-a-Box for iPhone is available from the Apple® App Store.

If you have a copy of Band-in-a-Box 2011 or higher, then with the Band-in-a-Box iPhone version you can:

  • Quickly transfer your existing library of songs from BB Desktop to BB iPhone, including chord lead sheets and audio (M4A).  See the chord lead sheets and play the songs anytime on your iPhone, without re-connecting to BB Desktop.
  • Enter songs from scratch on your BB iPhone by typing in chord symbols to the song.
  • Generate audio on your BB iPhone for the songs by pressing play.  The songs play on the iPhone and are stored on the iPhone as M4A files.  This connects across your home network or the internet to your desktop version of Band-in-a-Box
  • Send songs from BB iPhone to BB Desktop.

Here are some typical uses for your BB iPhone version.  This assumes that you have the BB Desktop version:

  • Jim has entered lots of songs over the years into his BB Desktop version.  He now wants to practice his guitar playing on these tunes using only his BB iPhone.  As a one-time procedure, at home (over his home network WiFi) he first transfers his entire song library to BB iPhone, including lead sheets and audio.  This takes about 10 seconds per song.  Now he has his BB song library on his BB iPhone and doesn’t need to connect to his BB Desktop again (unless he wants more songs, or to generate different chords for the songs).  He plays the songs on his iPhone, either using the iPhone speakers, headphones, or plugging the iPhone line out into his stereo system.  He will only ever need to connect to BB Desktop again if he wants to get more songs, or regenerate them in different styles etc.
  • Joan is playing a solo vocal gig, using BB iPhone as her backup band.  She connects the iPhone audio out to the PA system.  A customer requests one of her compositions, a song that she knows, but doesn’t have a backing band arrangement for.  On her break, she types in the chords to the song, presses PLAY, and the audio file generates and is ready to play on her BB iPhone (by connecting to BB Desktop over the Internet).  After the gig, she sends the song to her BB Desktop, so that is available there too as part of her song library.

BB2Go Dialog

The iPhone version of Band-in-a-Box will see the BB2Go folder (C:\bb\BB2Go).  Any Band-in-a-Box songs that you put in this folder are visible to the BB iPhone.  You can send files back and forth from BB iPhone to Band-in-a-Box for Windows®, and the files go to the BB2Go folder.

You can add audio to the Band-in-a-Box files in the BB2Go folder from the Band-in-a-Box Windows menu with the BB2Go command and select the files that you want to have MP4/M4A audio added.  You can also generate the audio from the iPhone version.

Note: If you are using Windows® XP or Vista, these features require Apple® QuickTime® Library for Windows® to be installed, which you can download from

More documentation for the BB iPhone version is available at

Use the [Refresh] button to refresh the list when additional files have been added externally.
You can use the Filter to search the songs for a particular word.
The [Clear] button removes the search term.

Generate mp4 file(s): There are three options for generating mp4 files for the iPhone.  [For selected song] generates an mp4 file for the selected song, you can then send the Band-in-a-Box song and the mp4 to iPhone BB using the Band-in-a-Box service. [For all songs in folder of selected song] generates mp4 files for all songs in the same folder as the selected song.  When generated, the files will be green in the list, indicating that mp4 audio is present. [For All Song in current list] generates mp4 files for all songs in the BB2Go folder (C:\bb\BB2Go).  It takes about 1 minute per song, then you can send the songs and the mp4 audio to the iPhone.

The [Open Explorer BB2Go Folder] button opens the C:\bb\BB2Go folder in Windows® Explorer.  You can add files to the folder in Explorer and then press [Refresh] to see them in this dialog.

The [Open this song in BB] button opens the currently highlighted song in Band-in-a-Box.

Band-in-a-Box Service: Band-in-a-Box Service is the program that connects your iPhone over the Internet to Band-in-a-Box.  It is located in the C:\bb\BBHelper folder.
 When the server is running you will see this button in the Windows® system tray.  Right-click on the button to open the menu of server commands and click Show to access the Options and set the password and server name.
Use the buttons to run, auto-run, and install the service.

Program Tutorial

Instructions for using Band-in-a-Box iPhone version
Run the BB iPhone program by clicking on the icon.  You will then see the Band-in-a-Box screen.  This consists of:

  • Top Toolbar area (File Mixer Settings Play/Stop Chord Keyboard).
  • Title display line.
  • Chords area.

If you want to edit information in a song, press the Chord Keyboard icon.  This will open the Chord Keyboard, and also a “Song Parameters” section at the top to choose style, tempo and song form.

Let’s open and play an existing song.

Press FILE and then OPEN.  You will then see a list of the demo songs that are included with BB iPhone.  You should see “Blues Shuffle Demo” and “Jazz Swing Demo.”  You will notice that these file names are in green.  The green indicates that audio (M4A) is available for these songs, and they are “ready-to-play” and don’t have to be re-generated.

Choose “Jazz Swing Demo.”  This song was previously generated using BB iPhone, and the arrangement was made entirely from the chord progression.  The arrangement sounds realistic because it is using the high quality RealTracks present in Band-in-a-Box.

Press the Green PLAY button.  (Note: If the play button is Red, it indicates that the song will need to be generated, by connecting to BB Desktop).

Press STOP at any time.

Let’s enter our own song from scratch.

We will enter a simple blues progression, which is 12 bars long, in the key of C.

Press File and then NEW.

Open the Chord Keyboard, so that the song is editable.

Choose a style for the song.  Press the Style button (at the left of the screen, below the title), then choose the genre Blues, and select the style _BLSHUFF (Blues Shuffle) which is the 3rd one on the list.

Leave the tempo at the default of 140 (or change it by clicking on it).

Leave the key signature at C (or change it by clicking on it).

The song formula will say something like [1] [16] [3].  That means the song form begins at bar 1, and ends at bar 16, and repeats 3 times.  Since this is a 12-bar blues (not 16 bars), we click on the “16” and change it to 12.  We can leave the number of repeats of the form at 3 (or change it by clicking on it).

Type in the chords.  Click on bar 1 on the chord sheet.  Then use the chord keyboard to type in a chord.  To move to a new bar, click on the bar so that the highlight bar moves to that bar.  Once you are in the bar, type the chord on the chord keyboard.
Type “C” in bar 1.
Type “F” in bar 5.
Type “C” in bar 7.
Type “G7” in bar 9 - do this by typing “G” and then “7.”
Type “F7” in bar 10.
Type “C” in bar 11.

Enter a title for your song.  Call it “My Blues” and then save it by choosing File-Save.

That’s it!  You’ve entered your first song.

Close the Chords Keyboard window.

Now to hear your song, you are going to need to be connected to your Band-in-a-Box Desktop version.

Connecting to the BB Desktop Version

Since the song has not been generated yet, the PLAY button will be RED, indicating that the song audio needs to be generated.  Press the red Play button, and this will launch the Server Connection dialog.  Here you will either enter the IP that is displayed from your home network (if BB Desktop is on the same home network as your iPhone), or your IP address of your BB Desktop version (or router).  Details of router setup are available on the File-Help menu.

Once you have entered the Server IP, then press OK, and then enter the password (the default password is admin, so if you haven’t changed it, that will work).

You will then see “Loading styles” … this only happens when it is a new connection, and BB desktop is telling BB iPhone what styles are available.

After that, you will see “Generating song” and then “Downloading file.”  After a wait of 15-30 seconds, your song will start playing.  Press STOP to stop the song.  At this point, the song “My Blues” now has audio saved with it and will be ready to play next time without connecting to the BB Desktop version.

Let’s get an existing song from the BB Desktop version.

Press File and then Server, then “Get Song(s).”  You will then see a list of the songs that are available on the BB Desktop program (i.e., the songs present in the BB2Go folder inside the BB folder).

Choose a song, and then press DOWNLOAD.  This will download the song.  Press PLAY to generate it and hear it.

That concludes the tutorial.

Chat online Online now

Need Help?

Customer Sales & Support

Phones (Pacific Time)
1-800-268-6272 1-250-475-2874
Live Chat
OPEN Online Ordering
OPEN Forums, email, web support
Message from sales and support team
Hi, have any questions? We're available to text chat.
Message from sales and support team
Hi, have any questions? We're available to text chat.
